VEVOR 30W Fiber Laser Marking Machine Metal Engraver Gold Silver

30W Portable Fiber Laser Marking Machine A portable fiber laser marking machine can be marked on metal and some non-metal materials, marking out the text clearly and permanently, and will not fade off. Using air-cooled cooling, the whole machine is small, the output beam quality is good, high reliability. Raycus brand laser has a long service life, maintenance-free, 100,000 hours without supplies, no power coupling loss, saving operating costs. Adopt contactless processing, will not cause pollution to the environment.

Precision marking

Portable and energy-saving

Powerful Software

Wildly Application

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

Premium Tough Quality

Incredibly Low Prices

Fast & Secure Delivery

30-Day Free Returns

24/7 Attentive Service

Key Features
Precision Marking
Fiber laser life can reach 100,000 hours. High beam quality, base mode (TEM00) output, focused spot diameter less than 20um. The divergence angle is 1/4 of the semiconductor pump laser, a single line is finer.
Galvanometer system
High-speed digital scanning oscillator system, fast processing speed, 2-3 times faster than traditional marking machine, optical scanning oscillator, high laser repetition frequency, high speed without distortion.
Portable and energy-saving
Small size, low power consumption, the whole machine consumes less than 500W; built-in air-cooled cooling method, abandoning the bulky water-cooled unit, covering a smaller area and easier installation.
Elaborate lifting wheel
Equipped with a hidden lifting rod for high positioning accuracy. The wheel can be used to adjust the height of the galvanometric system, and the small handle on the wheel facilitates adjustment.
Powerful software
Compatible with Coreldraw, AutoCAD, and other software files; support PLT, PCX, DXF, BMP, etc., can directly use SHX, TTF font; support automatic coding, printing serial numbers, batch numbers, dates, bar codes, and two-dimensional codes, automatic jump number, etc., USB interface output control.
Widely Application
Equipped with an optical isolator, effectively shielding the reflected light, it can completely operate on gold, silver, copper, aluminum, silicon, and other high-bright surfaces and highly reflective materials without deviating from the positive center of the field mirror, which greatly broadens the application field. And for different metals, through frequency and energy adjustment, it can act out a certain color.

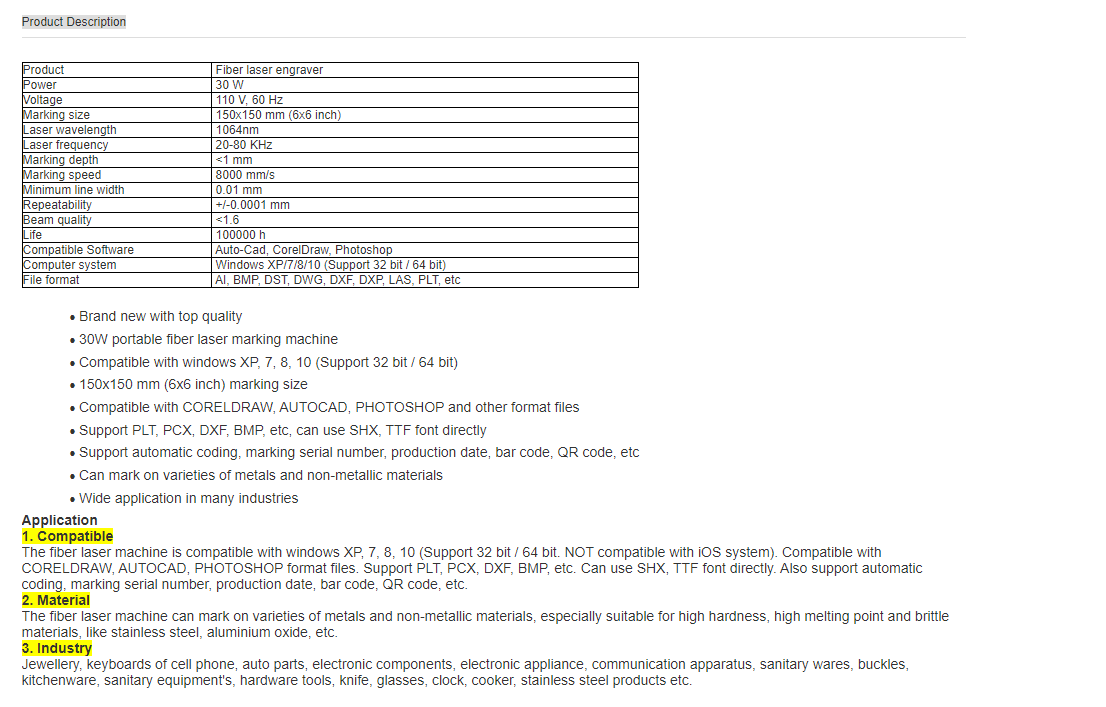

Specifications

Product Name: Fiber laser marking machine

Power Supply: AC110V/60HZ

Beam Quality: <1.6

Output Power:30W

Maximum Marking Line Speed: 10000mm / s

Laser Source Brand: Raycus

Laser Wavelength: 1064nm

Marking Range:150mm*150mm/200mm*200mm

Laser Repetition Frequency: 40KHz-60KHz/50KHz-100KHz

Maximum Single Pulse Energy: 0.75(mJ)/1(mJ)

Power Adjustment Range: 10%-100%

Minimum Character: 0.15mm

Marking Depth: 0.01-1.0mm

Repeat Accuracy: ±0.0001mm

Minimum Line Width: 0.01mm

Power Consumption of The Machine: ≤500w

Cooling System: air-cooled

Control Interface: USB

Continuous Working Time: Can work continuously

Package Content

1 x Laser Marking Machine

1 x Goggles

1 x Foot Switch

1 x Display Bracket

1 x Repair Tool

1 x Instructions

1 x U Disk

1 x Positioning Tool

1 x Power Input Line

1 x Data Transmission Line

1 x Connection

1 x Marking Samples

Returns Accepted for this item if it's within 14 Days
