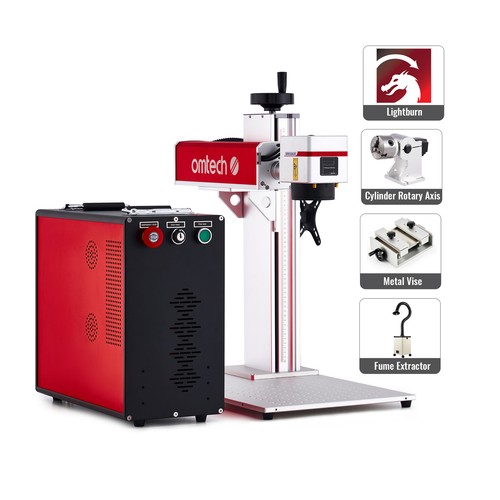

OMTech™ JPT MOPA Fiber Laser Color Marking Machine Optional
Accessories 7x7USD $3,299.99
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
BETTER TOGETHER with Rotary with Lightburn Basic Combo Premium Combo Extreme Combo with Rotary with Lightburn Basic Combo Premium Combo Extreme Combo
DESCRIPTION The answer to your metalwork needs is here! Our MP series JPT MOPA Fiber Laser Marking Machines make colorful designs on your metals. Equipped with a Galvo Drive and variable lenses, metalworking masters can depend on this machine to provide accurate and effective etchings on all of your metallic materials.
FEATURES Laser Source Field Lens Scanning Software Colorful Mark Red Dot Safety Laser Source JPT M7 SOLID-STATE LASER Enjoy stable dependable operation with an MTTF over 100,000 hours thanks to this engraver's solid-state JPT MOPA laser source. Its optical amplifier boosts the beam produced by the master oscillator, with independently adjustable pulse frequency and width to offer great versatility applicable to a wide range of materials. Field Lens FΘ FIELD LENS Our Fθ lens creates vivid markings on flat surfaces by maintaining a consistent, focused laser spot size across its 6.9″×6.9″ (175×175 mm) working area. Producing less than 1% distortion, it flawlessly executes intricate designs with unbelievable precision. Scanning SINO-GALVO SCANNING HEAD The laser arm's Sino-Galvo drive and scanning system provides outstanding accuracy and works with the Fθ lens to produce both fast and stable marking of flat surfaces at speeds as fast as 275.6 inches per second (7000 mm/s). Software EZCAD2 SOFTWARE The EZCAD2 software boasts a graphically process-oriented interface. In this way, you can map marking processes visually without much prior programming knowledge. This reduces your rejects to a minimum, both in series production and for custom-made products Colorful Mark FULL COLOR MARKING Quickly and easily create dark marks on anodized aluminium or full color images and patterns on stainless steel, titanium, and chromium thanks to the easy frequency modulation allowed by this engraver's MOPA design. Red Dot RED DOT GUIDANCE Visible laser pointers help make focusing quick and easy. The scanning lens provides a clear, safe red light preview of your pattern's outline for convenient positioning. Safety SAFE & SECURE Separately grounded for your safety, the mainboard, scanner, and laser source also have separate power buttons. The access key prevents any unauthorized use of your laser.
SPECIFICATION Power 20W 30W 60W 80W 100W Laser Wavelength 1064nm 1064nm 1064nm 1064nm 1064nm Laser Source JPT MOPA M7 JPT MOPA M7 JPT MOPA M7 JPT MOPA M7 JPT MOPA M7 Work Area 6.9×6.9 in. 6.9 × 6.9 in. 6.9×6.9 in. 4.3×4.3 or 6.9×6.9 in. 4.3×4.3 or 6.9×6.9 in. Max. Engraving Speed 275.6 ips 275.6 ips 275.6 ips 275.6 ips 275.6 ips Max. Marking Depth 0.002 in. 0.002 in. 0.003 in. 0.004 in. 0.004 in. Included Software EzCad2 EzCad2 EzCad2 EzCad2 EzCad2 Modulation Frequency 1 ~ 4000 kHz 1 ~ 4000 kHz 1 ~ 4000 kHz 1 ~ 4000 kHz 1 ~ 4000 kHz
YOU CAN ENGRAVE THESE MATERIALS ⭕ Acrylic ⭕ Tile ⭕ Brass ⭕ Tungsten ⭕ Granite ⭕ Marble ⭕ Tile ⭕ Aluminum ⭕ Gold ⭕ Silver ⭕ Rated Power ⭕ Dimensions ⭕ Net Weight
OPTIONAL ACCESSORIES Rotary Axis Lightburn Metal Vise Rotary Axis 360° ROTARY AXIS This rotary axis with 4-wire attachment cable easily connects to the machine's dedicated port for plug-and-play installation when you need to get to work creating precision engravings on gold rings silver bracelets, steel and aluminum tubes, and other curved surfaces. Learn more Lightburn LIGHTBURN COMPATIBLE Your EzCad2-based fiber laser engraver works with LightBurn's latest galvo functionality on Mac, Windows, and Linux systems to let you create even the most intricate patterns easily. Learn more Metal Vise FIBER LASER METAL VISE This compact but sturdy workbench table by OMTech is constructed from premium aluminum,firmly holding workpieces thicker blocks, irregular pieces can also be clamped loosely handled Learn more
FREQUENTLY BOUGHT TOGETHER
$369.99
$369.99
$209.99
$329.99
$149.99
$399.99
$329.99
$359.99
$99.99
$109.99
$119.99
$129.99
WHAT OUR CUSTOMERS HAD TO SAY ... ⭐⭐⭐⭐⭐ Troy The machine arrived in excellent condition. OMTECH shipped all items quickly. There was a delay in receiving the laser, but that was on the freight company not OMTech. Thanks for the great service! ⭐⭐⭐⭐⭐ Brock L Great laser and addition to our shop. Definitely a learning curve but with some patients and watching videos you will get the hang of it in a very short period of time. Cant wait to grow big enough to get another one. ⭐⭐⭐⭐⭐ Steve S. I've experienced a few problems; however, the OMTech team has been great at getting my issues resolved. Be patient and put your frustration aside; they'll have you back in business! They make a good product and they stand behind it. ⭐⭐⭐⭐⭐ Sean Matthews I have been using the OMTech 20w fiber for a few months now and I have to say that is has been a great experience. I am very impressed with the quality of all of their machines and you can't beat their support at least not in this industry.
DESCRIPTION The answer to your metalwork needs is here! Our MP series JPT MOPA Fiber Laser Marking Machines make colorful designs on your metals. Equipped with a Galvo Drive and variable lenses, metalworking masters can depend on this machine to provide accurate and effective etchings on all of your metallic materials.
FEATURES Laser Source Field Lens Scanning Software Colorful Mark Red Dot Safety Laser Source JPT M7 SOLID-STATE LASER Enjoy stable dependable operation with an MTTF over 100,000 hours thanks to this engraver's solid-state JPT MOPA laser source. Its optical amplifier boosts the beam produced by the master oscillator, with independently adjustable pulse frequency and width to offer great versatility applicable to a wide range of materials. Field Lens FΘ FIELD LENS Our Fθ lens creates vivid markings on flat surfaces by maintaining a consistent, focused laser spot size across its 6.9″×6.9″ (175×175 mm) working area. Producing less than 1% distortion, it flawlessly executes intricate designs with unbelievable precision. Scanning SINO-GALVO SCANNING HEAD The laser arm's Sino-Galvo drive and scanning system provides outstanding accuracy and works with the Fθ lens to produce both fast and stable marking of flat surfaces at speeds as fast as 275.6 inches per second (7000 mm/s). Software EZCAD2 SOFTWARE The EZCAD2 software boasts a graphically process-oriented interface. In this way, you can map marking processes visually without much prior programming knowledge. This reduces your rejects to a minimum, both in series production and for custom-made products Colorful Mark FULL COLOR MARKING Quickly and easily create dark marks on anodized aluminium or full color images and patterns on stainless steel, titanium, and chromium thanks to the easy frequency modulation allowed by this engraver's MOPA design. Red Dot RED DOT GUIDANCE Visible laser pointers help make focusing quick and easy. The scanning lens provides a clear, safe red light preview of your pattern's outline for convenient positioning. Safety SAFE & SECURE Separately grounded for your safety, the mainboard, scanner, and laser source also have separate power buttons. The access key prevents any unauthorized use of your laser.
SPECIFICATION Power 20W 30W 60W 80W 100W Laser Wavelength 1064nm 1064nm 1064nm 1064nm 1064nm Laser Source JPT MOPA M7 JPT MOPA M7 JPT MOPA M7 JPT MOPA M7 JPT MOPA M7 Work Area 6.9×6.9 in. 6.9 × 6.9 in. 6.9×6.9 in. 4.3×4.3 or 6.9×6.9 in. 4.3×4.3 or 6.9×6.9 in. Max. Engraving Speed 275.6 ips 275.6 ips 275.6 ips 275.6 ips 275.6 ips Max. Marking Depth 0.002 in. 0.002 in. 0.003 in. 0.004 in. 0.004 in. Included Software EzCad2 EzCad2 EzCad2 EzCad2 EzCad2 Modulation Frequency 1 ~ 4000 kHz 1 ~ 4000 kHz 1 ~ 4000 kHz 1 ~ 4000 kHz 1 ~ 4000 kHz
YOU CAN ENGRAVE THESE MATERIALS ⭕ Acrylic ⭕ Tile ⭕ Brass ⭕ Tungsten ⭕ Granite ⭕ Marble ⭕ Tile ⭕ Aluminum ⭕ Gold ⭕ Silver ⭕ Rated Power ⭕ Dimensions ⭕ Net Weight
OPTIONAL ACCESSORIES Rotary Axis Lightburn Metal Vise Rotary Axis 360° ROTARY AXIS This rotary axis with 4-wire attachment cable easily connects to the machine's dedicated port for plug-and-play installation when you need to get to work creating precision engravings on gold rings silver bracelets, steel and aluminum tubes, and other curved surfaces. Learn more Lightburn LIGHTBURN COMPATIBLE Your EzCad2-based fiber laser engraver works with LightBurn's latest galvo functionality on Mac, Windows, and Linux systems to let you create even the most intricate patterns easily. Learn more Metal Vise FIBER LASER METAL VISE This compact but sturdy workbench table by OMTech is constructed from premium aluminum,firmly holding workpieces thicker blocks, irregular pieces can also be clamped loosely handled Learn more
